Canon 6D has a
20.0MP Full frame (36 x 24 mm ) sized CMOS sensor and features Digic 5+ processor. On the other hand, Panasonic LX7 has a
10.0MP 1/1.7-inch (7.44 x 5.58 mm ) sized CMOS sensor and features Venus Engine processor.
Canon 6D's sensor provides 10MP more than Panasonic LX7's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.

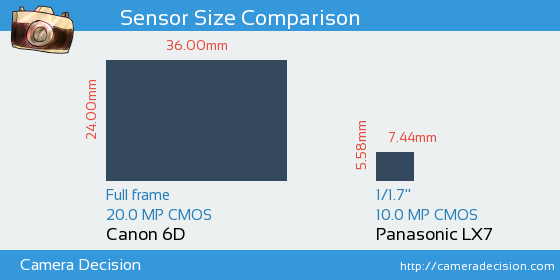

Below you can see the 6D and LX7 sensor size comparison.
Sensor Size and Resolution Comparison image of Canon 6D and Panasonic LX7 Cameras
As seen above, Canon 6D has a 20.8x Larger sensor area than Panasonic LX7. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Canon 6D and Panasonic LX7 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, 6D has scored 82, 32 points higher than LX7.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Canon 6D
82
23.8 bits
12.1 Evs
2340 ISO
Panasonic LX7
50
20.7 bits
11.7 Evs
147 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Canon 6D
or the
Panasonic LX7 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Full frame versus 1/1.7-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
