Canon 5D MIV has a
30.0MP Full frame (36 x 24 mm ) sized CMOS sensor and features Digic 6+ processor. On the other hand, Samsung NX500 has a
28.0MP APS-C (23.5 x 15.7 mm ) sized BSI-CMOS sensor and features DRIMe 5 processor.
One other difference between these two cameras that is worth mentioning is that Samsung NX500's sensor doesn't have an anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

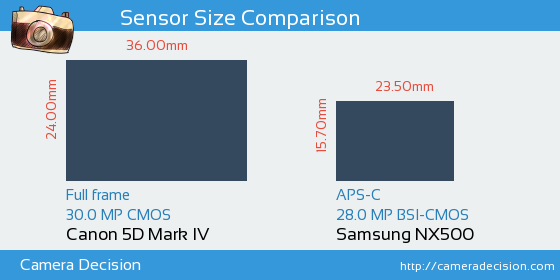

Below you can see the 5D MIV and NX500 sensor size comparison.
Sensor Size and Resolution Comparison image of Canon 5D MIV and Samsung NX500 Cameras
As seen above, Canon 5D MIV has a 2.3x Larger sensor area than Samsung NX500. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Canon 5D MIV and Samsung NX500 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, 5D MIV has scored 91, 4 points higher than NX500.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Canon 5D MIV
91
24.8 bits
13.6 Evs
2995 ISO
Samsung NX500
87
24.8 bits
13.9 Evs
1379 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Canon 5D MIV
or the
Samsung NX500 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Full frame versus APS-C),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
