Canon 500D has a
15.0MP APS-C (22.3 x 14.9 mm ) sized CMOS sensor and features Digic 4 processor. On the other hand, Canon 5D MIV has a
30.0MP Full frame (36 x 24 mm ) sized CMOS sensor and features Digic 6+ processor.
Canon 5D MIV's sensor provides 15MP more than Canon 500D's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.

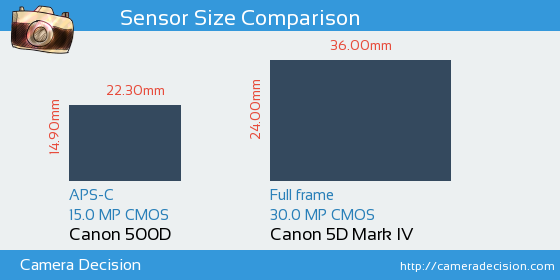

Below you can see the 500D and 5D MIV sensor size comparison.
Sensor Size and Resolution Comparison image of Canon 500D and Canon 5D MIV Cameras
As seen above, Canon 5D MIV has a 2.6x Larger sensor area than Canon 500D. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
DxOMark is a benchmark that scientifically assesses image quality of camera sensors. It scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Canon 500D and Canon 5D MIV sensors have been tested by DxO and the results show that 5D MIV has a better overall score of 91, 28 points higher compared to 500D's score of 63.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Canon 500D
63
21.7 bits
11.5 Evs
663 ISO
Canon 5D MIV
91
24.8 bits
13.6 Evs
2995 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Canon 500D
or the
Canon 5D MIV ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(APS-C versus Full frame),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
