Size and weight is a big decision factor when you are trying to find the ideal camera for your needs.
In this section, We are going to illustrate Canon 400D and Canon SX20 IS side-by-side from the front, back and top in their relative dimensions. Canon 400D has external dimensions of 127 x 94 x 65 mm (5 x 3.7 x 2.56″) and weighs 556 g (1.23 lb / 19.61 oz) (including batteries). Canon SX20 IS has external dimensions of 128 x 88 x 87 mm (5.04 x 3.46 x 3.43″) and weighs 600 g (1.32 lb / 21.16 oz) (including batteries).

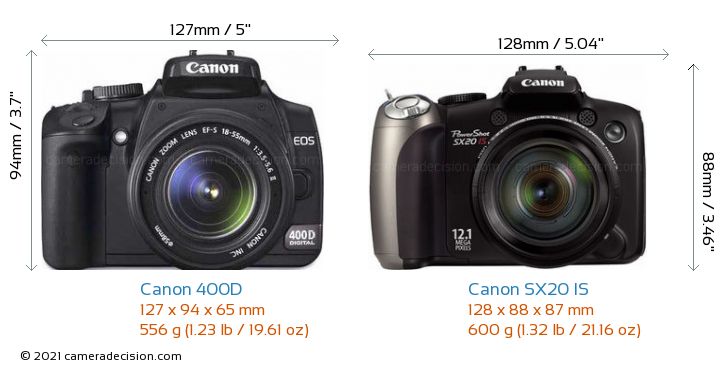

Below you can see the front view size comparison of Canon 400D and Canon SX20 IS. Canon 400D is 1mm narrower and 22mm thinner than Canon SX20 IS but it is also 6mm taller. As you can tell, actually this is not a fair size comparison since Canon SX20 IS has a built-in lens but Canon 400D doesn't. Once you put a lens on 400D, its thickness will increase significantly.
Weight is another important factor especially when deciding on a camera that you want to carry with you all day.
Canon 400D is 44g lighter than the Canon SX20 IS but we don't think this will make a significant difference.
Again, this comparison may not be very useful in real life as we are comparing the weight of a camera with a built-in lens to the body-only weight of an interchangeable lens camera. Once you put a lens on 400D, the total kit will weigh much higher.
Unfortunately neither Canon EOS 400D (EOS Digital Rebel XTi / EOS Kiss Digital X) nor Canon PowerShot SX20 IS provides any type of weather sealing in their body, so you have to give extra care especially when you are shooting outdoors. If weather sealing is a must-have feature for you, check these sections: Top DSLR Cameras with Weather Sealing Top Bridge Cameras with Weather Sealing
LCD Screen Size and Features
Canon 400D and Canon SX20 IS's LCD screens has the same diagonal size of 2.5".
On the other hand, Canon SX20 IS sports a Fully Articulated screen
which you can change the angle and position of the screen almost freely, making it possible to shoot from waist or over the head levels, and especially very useful for shooting selfies and video. Canon 400D's LCD screen is a fixed type which provides almost no flexibility in shooting positions compared to SX20 IS.
