Both Pentax MX-1 and Pentax Q10 have 12.0 MP resolution sensors but Pentax MX-1's sensor is 1/1.7-inch (7.44 x 5.58 mm ) and Pentax Q10's sensor is 1/2.3-inch (6.17 x 4.55 mm ).
Since Pentax MX-1's has a larger sensor area with the same resolution, this means that it also has a larger pixel area hence better light collecting capacity for a given aperture compared to Pentax Q10.

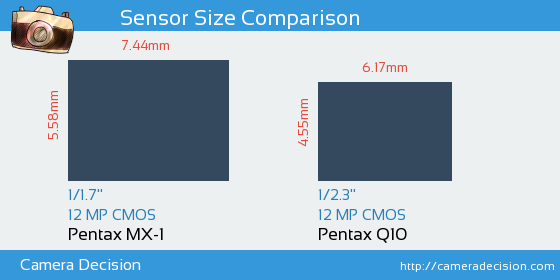

Below you can see the MX-1 and Q10 sensor size comparison.
Sensor Size and Resolution Comparison image of Pentax MX-1 and Pentax Q10 Cameras
As seen above, Pentax MX-1 has a 1.5x Larger sensor area than Pentax Q10. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
At Camera Decision, we also look at Dxo Mark sensors when available as we think it is a good indicator of image quality.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Pentax MX-1
49
20.4 bits
11.3 Evs
208 ISO
Pentax Q10
49
21.1 bits
10.9 Evs
183 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Pentax MX-1
or the
Pentax Q10 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(1/1.7-inch versus 1/2.3-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
