Panasonic S1 II has a
24.0MP Full frame (35.6 x 23.8 mm ) sized Partially-Stacked CMOS sensor and features Venus Engine processor. On the other hand, Panasonic GF5 has a
12.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine FHD processor.
Panasonic S1 II's sensor provides 12MP more than Panasonic GF5's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
Another difference between these two cameras is that Panasonic S1 II's sensor lacks anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

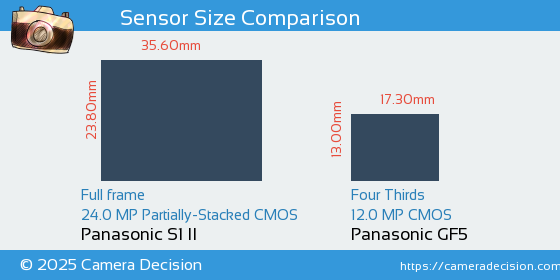

Below you can see the S1 II and GF5 sensor size comparison.
Sensor Size and Resolution Comparison image of Panasonic S1 II and Panasonic GF5 Cameras
As seen above, Panasonic S1 II has a 3.8x Larger sensor area than Panasonic GF5. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Panasonic S1 II
or the
Panasonic GF5 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Full frame versus Four Thirds),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
