Panasonic LX7 has a
10.0MP 1/1.7-inch (7.44 x 5.58 mm ) sized CMOS sensor and features Venus Engine processor. On the other hand, Panasonic GF5 has a
12.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine FHD processor.

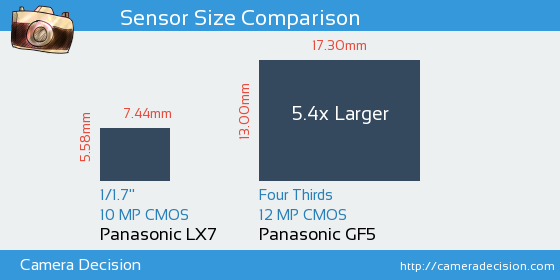

Below you can see the LX7 and GF5 sensor size comparison.
Sensor Size and Resolution Comparison image of Panasonic LX7 and Panasonic GF5 Cameras
As seen above, Panasonic GF5 has a 5.4x Larger sensor area than Panasonic LX7. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
At Camera Decision, we also look at Dxo Mark sensors when available as we think it is a good indicator of image quality.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Panasonic LX7
50
20.7 bits
11.7 Evs
147 ISO
Panasonic GF5
50
20.5 bits
10.0 Evs
573 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Panasonic LX7
or the
Panasonic GF5 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(1/1.7-inch versus Four Thirds),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
