Panasonic S1 has a
24.0MP Full frame (35.6 x 23.8 mm ) sized CMOS sensor and features Venus Engine processor. On the other hand, Pixii Max has a
24.5MP Full frame (36 x 24 mm ) sized CMOS sensor .
Another similarity between these two cameras is that both Pixii Max and Panasonic S1 sensors lack anti-alias (Low-Pass) filters. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

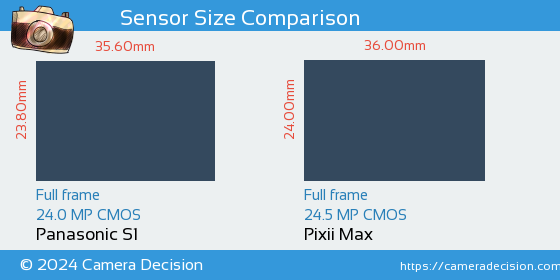

Below you can see the S1 and Max (A3410) sensor size comparison.
Sensor Size and Resolution Comparison image of Panasonic S1 and Pixii Max Cameras
Panasonic S1 and Pixii Max have almost the same sensor size, so neither of them has any significant advantage over the other in terms of providing control over depth of field when used with the same focal length and aperture.
DxOMark Sensor Scores
Both Panasonic S1 and Pixii Max sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, S1 has scored 95, 2 points higher than Max (A3410).
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Panasonic S1
95
25.2 bits
14.5 Evs
3333 ISO
Pixii Max
93
25.2 bits
13.6 Evs
3108 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Panasonic S1
or the
Pixii Max ,
including hyperfocal distance.
