Panasonic GH5 has a
20.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine processor. On the other hand, Panasonic GF1 has a
12.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine HD processor.
Panasonic GH5's sensor provides 8MP more than Panasonic GF1's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
Another difference between these two cameras is that Panasonic GH5's sensor lacks anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

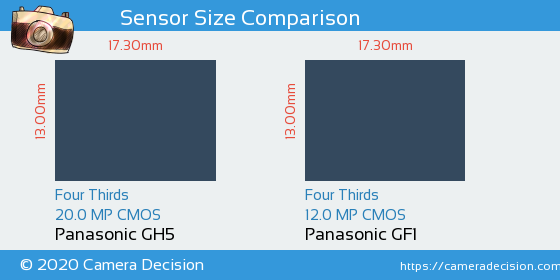

Below you can see the GH5 and GF1 sensor size comparison.
Sensor Size and Resolution Comparison image of Panasonic GH5 and Panasonic GF1 Cameras
Panasonic GH5 and Panasonic GF1 have the same sensor sizes so they will provide same level of control over the depth of field when used with same focal length and aperture. On the other hand, since Panasonic GF1 has 67% larger pixel area (18.74µm 2 vs 11.16µm 2 ) compared to Panasonic GH5, it has larger pixel area to collect light hence potential to have less noise in low light / High ISO images.
DxOMark Sensor Scores
Both Panasonic GH5 and Panasonic GF1 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, GH5 has scored 77, 23 points higher than GF1.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Panasonic GH5
77
23.9 bits
13.0 Evs
807 ISO
Panasonic GF1
54
21.2 bits
10.3 Evs
513 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Panasonic GH5
or the
Panasonic GF1 ,
including hyperfocal distance.
