Olympus E-M10 II has a
16.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features TruePic VII processor. On the other hand, Panasonic LX3 has a
10.0MP 1/1.63-inch (8.07 x 5.56 mm ) sized CCD sensor .
Olympus E-M10 II's sensor provides 6MP more than Panasonic LX3's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
Below you can see the E-M10 II and LX3 sensor size comparison.

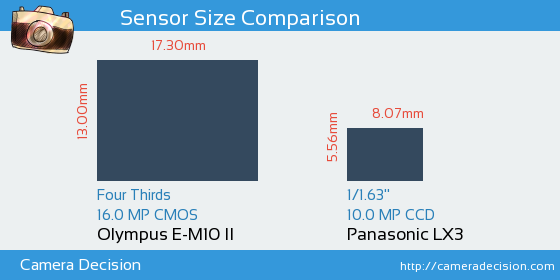

Sensor Size and Resolution Comparison image of Olympus E-M10 II and Panasonic LX3 Cameras
As seen above, Olympus E-M10 II has a 5.0x Larger sensor area than Panasonic LX3. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Olympus E-M10 II and Panasonic LX3 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, E-M10 II has scored 73, 34 points higher than LX3.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Olympus E-M10 II
73
23.1 bits
12.5 Evs
842 ISO
Panasonic LX3
39
19.6 bits
10.8 Evs
94 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Olympus E-M10 II
or the
Panasonic LX3 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Four Thirds versus 1/1.63-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
