Olympus E-M1 II has a
20.0MP Four Thirds (17.4 x 13 mm ) sized CMOS sensor and features TruePic VIII processor. On the other hand, Panasonic GM5 has a
16.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine processor.
Another difference between these two cameras is that Olympus E-M1 II's sensor lacks anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

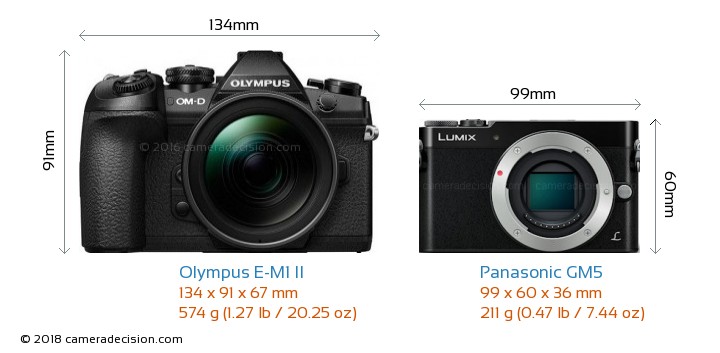

Below you can see the E-M1 II and GM5 sensor size comparison.
Sensor Size and Resolution Comparison image of Olympus E-M1 II and Panasonic GM5 Cameras
Olympus E-M1 II and Panasonic GM5 have almost the same sensor size, so neither of them has any significant advantage over the other in terms of providing control over depth of field when used with the same focal length and aperture.
DxOMark Sensor Scores
Both Olympus E-M1 II and Panasonic GM5 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, E-M1 II has scored 80, 14 points higher than GM5.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Olympus E-M1 II
80
23.7 bits
12.8 Evs
1312 ISO
Panasonic GM5
66
22.1 bits
11.7 Evs
721 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Olympus E-M1 II
or the
Panasonic GM5 ,
including hyperfocal distance.
