Nikon D7500 has a
21.0MP APS-C (23.5 x 15.7 mm ) sized CMOS sensor and features Expeed 5 processor. On the other hand, Panasonic GH5 has a
20.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine processor.
Another similarity between these two cameras is that both Panasonic GH5 and Nikon D7500 sensors lack anti-alias (Low-Pass) filters. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

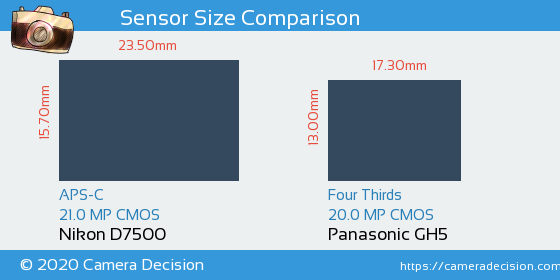

Below you can see the D7500 and GH5 sensor size comparison.
Sensor Size and Resolution Comparison image of Nikon D7500 and Panasonic GH5 Cameras
As seen above, Nikon D7500 has a 1.6x Larger sensor area than Panasonic GH5. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Nikon D7500 and Panasonic GH5 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, D7500 has scored 86, 9 points higher than GH5.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Nikon D7500
86
24.3 bits
14.0 Evs
1483 ISO
Panasonic GH5
77
23.9 bits
13.0 Evs
807 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Nikon D7500
or the
Panasonic GH5 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(APS-C versus Four Thirds),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
