Nikon D3400 has a
24.0MP APS-C (23.5 x 15.6 mm ) sized CMOS sensor and features Expeed 4 processor. On the other hand, Pentax 645D has a
40.0MP Medium format (44 x 33 mm ) sized CCD sensor and features Prime II processor.
Pentax 645D's sensor provides 16MP more than Nikon D3400's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
Another similarity between these two cameras is that both Pentax 645D and Nikon D3400 sensors lack anti-alias (Low-Pass) filters. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

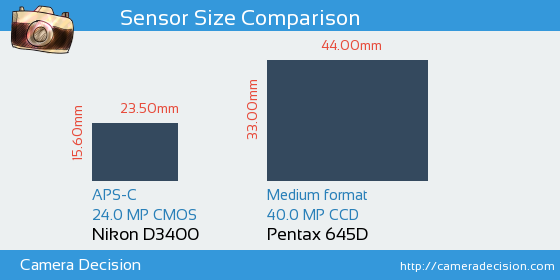

Below you can see the D3400 and 645D sensor size comparison.
As seen above, Pentax 645D has a 4.0x Larger sensor area than Nikon D3400. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Nikon D3400 and Pentax 645D sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, D3400 has scored 86, 4 points higher than 645D.
Model |
Overall |
Color Depth |
Dynamic Range |
Low-light ISO |
Nikon D3400 |
86 |
24.8 bits |
13.9 Evs |
1192 ISO |
Pentax 645D |
82 |
24.6 bits |
12.6 Evs |
1262 ISO |
