Size and weight is a big decision factor when you are trying to find the ideal camera for your needs.
In this section, We are going to illustrate Nikon 1 J4 and Samsung NX5 side-by-side from the front, back and top in their relative dimensions. Nikon 1 J4 has external dimensions of 100 x 60 x 29 mm (3.92 x 2.36 x 1.12″) and weighs 232 g (0.51 lb / 8.18 oz) (including batteries). Samsung NX5 has external dimensions of 123 x 87 x 40 mm (4.84 x 3.43 x 1.57″) and weighs 499 g (1.10 lb / 17.60 oz) (including batteries).

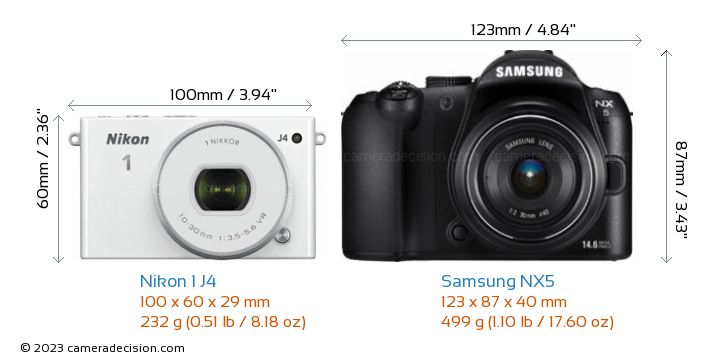

Below you can see the front view size comparison of Nikon 1 J4 and Samsung NX5. Nikon 1 J4 is clearly the smaller of the two cameras. Its body is 23mm narrower, 27mm shorter and 11mm thinner than Samsung NX5.
![Nikon 1 J4 vs Samsung NX5 Camera Size Comparison - Front View]()
Comparison image of Nikon 1 J4 and Samsung NX5 Size, Weight and External Dimensions - Front View
Here is the back view size comparison of Nikon 1 J4 and Samsung NX5.
![Nikon 1 J4 vs Samsung NX5 Camera Size Comparison - Back View]()
Comparison image of Nikon 1 J4 and Samsung NX5 Size and Weight - Back View

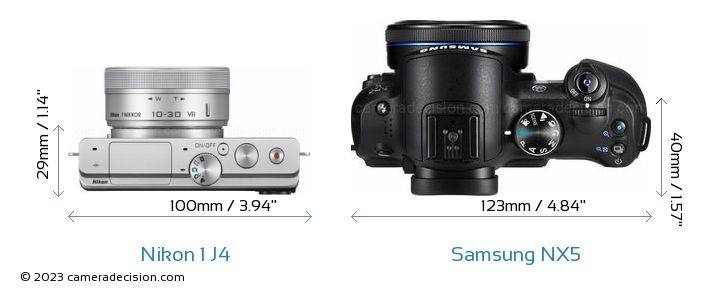

Now lets look at the top view comparison of Nikon 1 J4 and Samsung NX5.
![Nikon 1 J4 vs Samsung NX5 Camera Size Comparison - Top View]()
Top View Comparison image of Nikon 1 J4 and Samsung NX5 Size
Weight is another important factor especially when deciding on a camera that you want to carry with you all day.
Nikon 1 J4 is significantly lighter (267g ) than the Samsung NX5 which may become a big advantage especially on long walking trips.
Also keep in mind that body weight is not the only deciding factor when comparing two interchangeable camera bodies, you have to also take into account the lenses that you will be using with these bodies. Since Samsung NX5 has an APS-C sized sensor and Nikon 1 J4 has a smaller 1" sensor, Nikon 1 J4's lenses for a similar focal length and aperture will generally be lighter and smaller than the Samsung NX5 lenses.
Weight Comparison
Mirrorless Cameras
Thickness Comparison
Mirrorless Cameras
Weather Sealing
Unfortunately neither Nikon 1 J4 nor Samsung NX5 provides any type of weather sealing in their body, so you have to give extra care especially when you are shooting outdoors. If weather sealing is a must-have feature for you, check these sections: Top Mirrorless Cameras with Weather Sealing
LCD Screen Size and Features
Nikon 1 J4 and Samsung NX5's LCD screens has the same diagonal size of 3".
Unfortunately, both cameras has fixed screens so they don't tilt or flip in directions.
Nikon 1 J4 has a 18.0MP 1" (13.2 x 8.8 mm ) sized CMOS sensor and features Expeed 4 processor. On the other hand, Samsung NX5 has a 15.0MP APS-C (23.4 x 15.6 mm ) sized CMOS sensor and features DRIM Engine processor.

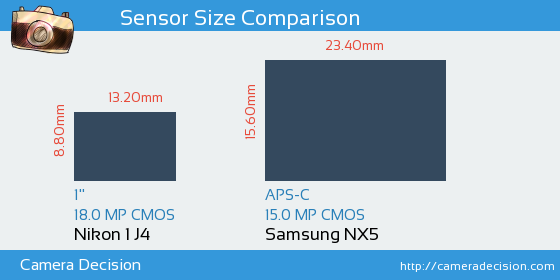

Below you can see the 1 J4 and NX5 sensor size comparison.
![Nikon 1 J4 vs Samsung NX5 Sensor Size Comparison]()
Sensor Size and Resolution Comparison image of Nikon 1 J4 and Samsung NX5 Cameras
As seen above, Samsung NX5 has a 3.1x Larger sensor area than Nikon 1 J4. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
Number of available lenses is a big decision factor while choosing your interchangeable lens camera. When we look at the available lenses for these two cameras, we see that Samsung NX5 has an advantage over Nikon 1 J4 There are 32 lenses for Samsung NX5's Samsung NX mount, on the other hand there are only 13 lenses for Nikon 1 J4's Nikon 1 lens mount.
Another important factor is the availability of image stabilization. None of these bodies have sensor based image stabilization so you have to buy lenses with Optical stabilization feature. Currently there are 7 lenses for Nikon 1 mount and 7 lenses for Samsung NX mount with IS.
| Lens Type |
# of Nikon 1 J4 Lenses |
# of Samsung NX5 Lenses |
| Standard Zoom |
4 |
4 |
| Standard Prime |
2 |
5 |
| Wideangle Zoom |
1 |
1 |
| Wideangle Prime |
2 |
11 |
| Telephoto Zoom |
2 |
2 |
| Telephoto Prime |
n/a |
3 |
| SuperZoom |
2 |
1 |
| Wideangle Fisheye Prime |
n/a |
4 |
| Macro Prime |
n/a |
1 |
| Perspective Control Prime |
n/a |
n/a |
| Telephoto Mirror Prime |
n/a |
n/a |
| TOTAL |
13 |
32 |
In this section, we rank and compare Nikon 1 J4 and Samsung NX5 for five different photography types in order to make your decision process easier in case you are specifically interested in one or more of these areas.
Nikon 1 J4 for Portrait Photography
Samsung NX5 for Portrait Photography
Average sized 1″ (13.2 x 8.8 mm) sensor
Very High Resolution Sensor: 18.0MP
Average Ergonomics&Handling
No Image Stabilization
No Built-in Viewfinder
Read the details
Large APS-C (23.4 x 15.6 mm) sensor
Electronic Built-in Viewfinder
Good Ergonomics&Handling
Average Resolution Sensor: 15.0MP
No Image Stabilization
Read the details
Nikon 1 J4 for Street Photography
Samsung NX5 for Street Photography
Live-view
Face-Detection Focusing
Average sized 1″ (13.2 x 8.8 mm) sensor
Medium sized Body
No Image Stabilization
No Built-in Viewfinder
Read the details
Large APS-C (23.4 x 15.6 mm) sensor
Electronic Built-in Viewfinder
Live-view
Face-Detection Focusing
Medium sized Body
No Image Stabilization
Read the details
Nikon 1 J4 for Sports Photography
Samsung NX5 for Sports Photography
Fast Continuous Shooting: 60.0fps
Fast Max shutter speed: 1/4000s
105 Cross Type Focus sensors
171 Focus Points
Wireless Connection
Average Ergonomics&Handling
No Image Stabilization
No Built-in Viewfinder
Environmental Sealings
Read the details
Electronic Built-in Viewfinder
Good Ergonomics&Handling
Fast Max shutter speed: 1/4000s
15 Focus Points
No Image Stabilization
Slow Continuous Shooting: 3.0fps
Environmental Sealings
Read the details
Nikon 1 J4 for Daily Photography
Samsung NX5 for Daily Photography
Large APS-C (23.4 x 15.6 mm) sensor
Medium size Body
499g
Body Thickness 40mm
Read the details
Nikon 1 J4 for Landscape Photography
Samsung NX5 for Landscape Photography
Very High Resolution Sensor: 18.0MP
Live-view
Average sized 1″ (13.2 x 8.8 mm) sensor
No Environmental Sealings
Read the details
Large APS-C (23.4 x 15.6 mm) sensor
Live-view
Average Resolution Sensor: 15.0MP
No Environmental Sealings
Read the details
You may have already made your decision about which camera suits better for your needs and your budget so far but in case you wonder how we rated Nikon 1 J4 and Samsung NX5, below you can find their scores in five different aspects.
Our Decision Algorithm dynamically scores cameras using 63 different specs, current price and DxO Mark scores (where possible) in order to make a more objective and consistent comparison.
Here is a summary of how Nikon 1 J4 and Samsung NX5 scores compare:
Nikon 1 J4
Ranked
#70 out of 126 in Rangefinder-style mirrorless cameras
Ranked
#327 out of 1220 in all Cameras
Samsung NX5
Ranked
#84 out of 86 in SLR-style mirrorless cameras
Ranked
#439 out of 1220 in all Cameras
Nikon 1 J4 is the clear winner of this comparison. It has a higher Overall Score and beats Samsung NX5 in all criteria. It has better general image quality, more features, more compact body and offers more value for the money
| General |
Nikon 1 J4 |
Samsung NX5 |
| Brand |
Nikon |
Samsung |
| Announced |
2014-04-10 |
2010-06-01 |
| Body Type |
Rangefinder-style mirrorless |
SLR-style mirrorless |
Sensor |
|
|
| Type |
CMOS |
CMOS |
| Size |
1" |
APS-C |
| Dimensions |
13.2 x 8.8 mm |
23.4 x 15.6 mm |
| Area |
116.16mm2 |
365.04mm2 |
| Megapixels |
18 megapixels |
15 megapixels |
| Max Resolution |
5232 x 3488 |
4592 x 3056 |
| Max Native Light sensitivity |
12,800 ISO |
3,200 ISO |
| Min Native Light sensitivity |
160 ISO |
100 ISO |
| RAW Support |
|
|
Autofocus |
|
|
| AF Touch |
|
|
| AF Continuous |
|
|
| AF Single |
|
|
| AF Tracking |
|
|
| AF Selective |
|
|
| AF Center |
|
|
| AF Multi Area |
|
|
| AF Live View |
|
|
| AF Face Detection |
|
|
| AF Contrast Detection |
|
|
| AF Phase Detection |
|
|
| Number of Focus Points |
171 |
15 |
Lens |
|
|
| Manual Focus |
|
|
| Lens Mount |
Nikon 1 |
Samsung NX |
| Number of Available Lenses |
13 |
32 |
Screen |
|
|
| Type |
Fixed type |
Fixed type |
| Size |
3" |
3" |
| Resolution |
1,037k dots |
230k dots |
| Touch Screen |
|
|
Viewfinder |
|
|
| Viewfinder |
None |
Electronic |
| Viewfinder Coverage |
n/a |
100% |
| Viewfinder Magnification |
n/a |
0.57x |
Photography Features |
|
|
| Max Mechanical Shutter |
1/4000s |
1/4000s |
| Max Electronic Shutter |
1/16000s |
n/a |
| Shutter Priority |
|
|
| Aperture Priority |
|
|
| Manual Exposure Mode |
|
|
| Custom White Balance |
|
|
| Image Stabilization |
No |
No |
| Built-in Flash |
|
|
| Flash Range |
5.00 m (ISO 100) |
11.00 m |
| Max Flash Sync |
n/a |
1/180s |
| External Flash |
|
|
| Continuous Shooting |
60.0 fps |
3.0 fps |
| Multi-Segment |
|
|
| Average |
|
|
| Spot |
|
|
| Partial |
|
|
| AF-Area |
|
|
| Center Weighted |
|
|
| AE Bracketing |
|
|
| WB Bracketing |
|
|
Video Features |
|
|
| Max Video Resolution |
1920 x 1080 |
1280 x 720 |
| Video Formats |
MPEG-4, H.264 |
H.264 |
| Microphone Port |
|
|
| Headphone Port |
|
|
Connectivity |
|
|
| Wireless Connectivity |
Built-In |
None |
| HDMI |
|
|
Physical |
|
|
| Environmental Sealing |
|
|
| Weight |
232g |
499g |
| Dimensions |
100 x 60 x 29mm |
123 x 87 x 40mm |
| Battery Life |
300 shots |
400 shots |
Other Features |
|
|
| Timelapse Recording |
|
|
| GPS |
None |
Optional |
DxO Sensor Scores |
|
|
|
