Leica T Typ 701 has a
16.0MP APS-C (23.6 x 15.7 mm ) sized CMOS sensor . On the other hand, Olympus PEN-F has a
20.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features TruePic VII processor.

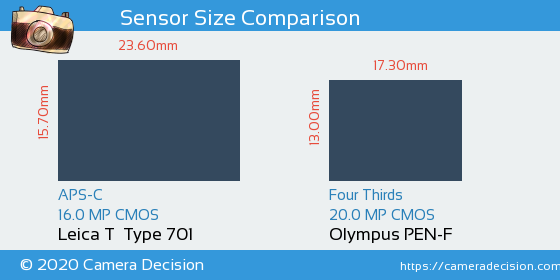

Below you can see the T Type 701 and PEN-F sensor size comparison.
Sensor Size and Resolution Comparison image of Leica T Typ 701 and Olympus PEN-F Cameras
As seen above, Leica T Typ 701 has a 1.6x Larger sensor area than Olympus PEN-F. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Leica T Typ 701 and Olympus PEN-F sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, T Type 701 has scored 75, 1 points higher than PEN-F.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Leica T Typ 701
75
23.0 bits
12.7 Evs
1082 ISO
Olympus PEN-F
74
23.1 bits
12.4 Evs
894 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Leica T Typ 701
or the
Olympus PEN-F ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(APS-C versus Four Thirds),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
