Leica SL has a
24.0MP Full frame (36 x 24 mm ) sized CMOS sensor and features Maestro II processor. On the other hand, Panasonic GH5 II has a
20.0MP Four Thirds (17.3 x 13 mm ) sized CMOS sensor and features Venus Engine processor.
Another similarity between these two cameras is that both Panasonic GH5 II and Leica SL sensors lack anti-alias (Low-Pass) filters. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

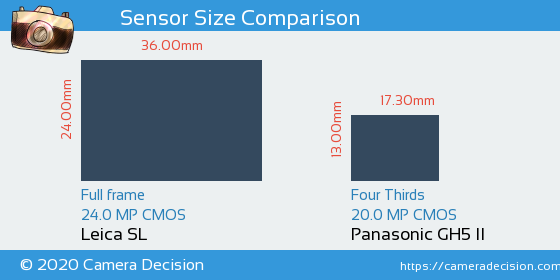

Below you can see the SL and GH5 II sensor size comparison.
Sensor Size and Resolution Comparison image of Leica SL and Panasonic GH5 II Cameras
As seen above, Leica SL has a 3.8x Larger sensor area than Panasonic GH5 II. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Leica SL and Panasonic GH5 II sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, SL has scored 88, 9 points higher than GH5 II.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Leica SL
88
25.0 bits
13.4 Evs
1821 ISO
Panasonic GH5 II
79
23.7 bits
13.1 Evs
1136 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Leica SL
or the
Panasonic GH5 II ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Full frame versus Four Thirds),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
