Leica Q has a
24.0MP Full frame (36 x 24 mm ) sized CMOS sensor and features Maestro II processor. On the other hand, Fujifilm XF1 has a
12.0MP 2/3-inch (8.8 x 6.6 mm ) sized EXRCMOS sensor .
Leica Q's sensor provides 12MP more than Fujifilm XF1's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.

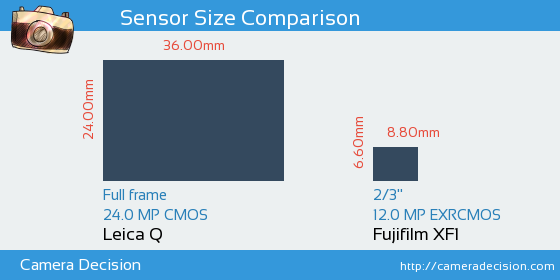

Below you can see the Q Typ 116 and XF1 sensor size comparison.
Sensor Size and Resolution Comparison image of Leica Q and Fujifilm XF1 Cameras
As seen above, Leica Q has a 14.9x Larger sensor area than Fujifilm XF1. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Leica Q and Fujifilm XF1 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, Q Typ 116 has scored 85, 36 points higher than XF1.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Leica Q
85
24.3 bits
12.7 Evs
2221 ISO
Fujifilm XF1
49
20.5 bits
11.2 Evs
199 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Leica Q
or the
Fujifilm XF1 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Full frame versus 2/3-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
