Leica M9 has a
18.0MP Full frame (36 x 24 mm ) sized CCD sensor . On the other hand, Nikon 1 AW1 has a
14.0MP 1-inch (13.2 x 8.8 mm ) sized CMOS sensor and features EXPEED 3A processor.
Another difference between these two cameras is that Leica M9's sensor lacks anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

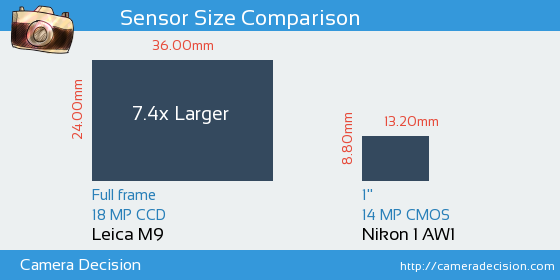

Below you can see the M9 and 1 AW1 sensor size comparison.
Sensor Size and Resolution Comparison image of Leica M9 and Nikon 1 AW1 Cameras
As seen above, Leica M9 has a 7.4x Larger sensor area than Nikon 1 AW1. Larger sensors give photographer more control on the depth of field and blurry background compared to smaller sensor when shot in same focal length and aperture.
DxOMark Sensor Scores
Both Leica M9 and Nikon 1 AW1 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, M9 has scored 69, 18 points higher than 1 AW1.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Leica M9
69
22.5 bits
11.7 Evs
884 ISO
Nikon 1 AW1
51
20.2 bits
10.9 Evs
428 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Leica M9
or the
Nikon 1 AW1 ,
including hyperfocal distance.
One thing to watch when comparing these two: they have different sensor sizes
(Full frame versus 1-inch),
so compare them at the same framing rather than the same focal length.
Put the same focal length on the smaller sensor and it will show less depth of
field, not more, because it also crops tighter. The calculator shows the
full frame equivalent focal length for each body so you can match the framing.
