Leica M11-P has a
60.0MP Full frame (36 x 24 mm ) sized BSI-CMOS sensor and features Maestro III processor. On the other hand, Panasonic S1 has a
24.0MP Full frame (35.6 x 23.8 mm ) sized CMOS sensor and features Venus Engine processor.
Leica M11-P's sensor provides 36MP more than Panasonic S1's sensor, which gives a significant advantage in real life. You can print your images larger or crop more freely.
On the other hand, please keep in mind that Max sensor resolution is not the only determinant of resolving power. Factors such as the optical elements, low pass filter, pixel size and sensor technology also affects the final resolution of the captured image.
One other difference between these two cameras that is worth mentioning is that Panasonic S1's sensor doesn't have an anti-alias (Low-Pass) filter. Removing anti-alias filter increases the sharpness and level of detail but at the same time, it increases the chance of moiré occurring in certain scenes.

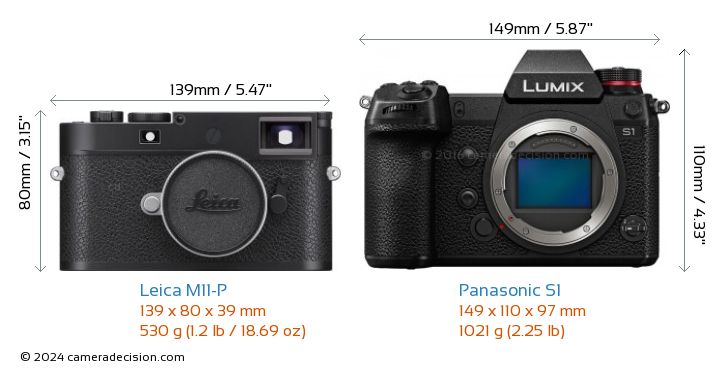

Below you can see the M11-P and S1 sensor size comparison.
Sensor Size and Resolution Comparison image of Leica M11-P and Panasonic S1 Cameras
Leica M11-P and Panasonic S1 have almost the same sensor size, so neither of them has any significant advantage over the other in terms of providing control over depth of field when used with the same focal length and aperture.
DxOMark Sensor Scores
Both Leica M11-P and Panasonic S1 sensors have been tested by DxoMark. DxoMark scores camera sensors for color depth (DXO Portrait), dynamic range (DXO Landscape) and low-light sensitivity (DXO Sports), and also gives them an overall score. Of the two cameras that we are comparing, M11-P has scored 100, 5 points higher than S1.
Model
Overall
Color Depth
Dynamic Range
Low-light ISO
Leica M11-P
100
26.3 bits
14.8 Evs
3376 ISO
Panasonic S1
95
25.2 bits
14.5 Evs
3333 ISO
Sensor size sets the circle of confusion, so it drives how much depth of field each
of these bodies gives you at a given aperture. You can calculate it exactly for the
Leica M11-P
or the
Panasonic S1 ,
including hyperfocal distance.
