Size and weight are big decision factors when you are trying to find the ideal camera for your needs.
In this section, we are going to illustrate the Olympus E-P5 and Olympus E-M10 III side-by-side from the front, back and top in their relative dimensions. Olympus E-P5 has external dimensions of 122 x 69 x 37 mm (4.8 x 2.72 x 1.46″) and weighs 420 g (0.93 lb / 14.82 oz) (including batteries). Olympus E-M10 III has external dimensions of 122 x 84 x 50 mm (4.8 x 3.31 x 1.97″) and weighs 410 g (0.90 lb / 14.46 oz) (including batteries).

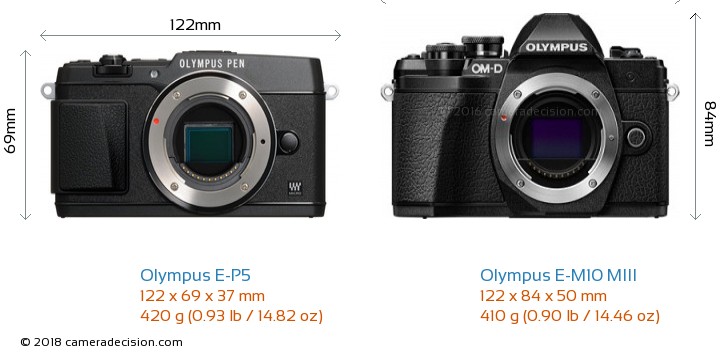

Below you can see the front-view size comparison of the Olympus E-P5 and the Olympus E-M10 III. Olympus E-P5 has the same height with Olympus E-M10 III. On the other hand, with a width of 69mm, it is 15 narrower and also with a thickness of 37mm, it is 13mm thinner than Olympus E-M10 III.

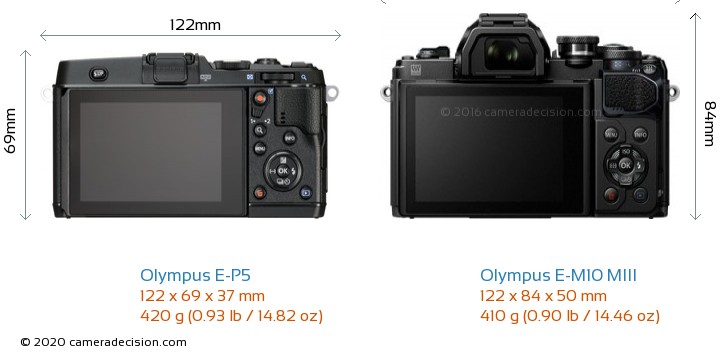

Here is the back view size comparison of the Olympus E-P5 and Olympus E-M10 III.

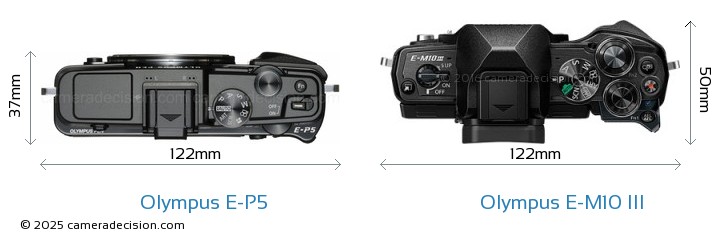

Now lets look at the top view comparison of Olympus E-P5 and Olympus E-M10 III.
Weight is another important factor, especially when deciding on a camera that you want to carry with you all day.
Olympus E-M10 III is 10g lighter than the Olympus E-P5 but we don't think this will make a significant difference.

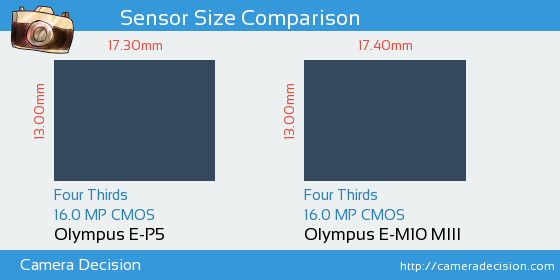

Also keep in mind that body weight is not the only deciding factor when comparing two interchangeable camera bodies, you also have to take into account the lenses that you will be using with these bodies. Since both Olympus E-P5 and Olympus E-M10 III have the same Micro Four Thirds lens mount and Four Thirds sized sensors, lenses will not be a differentiator on total size of the system.
Weather Sealing
Unfortunately neither the Olympus PEN E-P5 nor Olympus OM-D E-M10 Mark III provides any type of weather sealing in their bodies, so you have to give extra care especially when you are shooting outdoors. If weather sealing is a must-have feature for you, check these sections: Top Mirrorless Cameras with Weather Sealing
LCD Screen Size and Features
Olympus E-P5 and Olympus E-M10 III's LCD screens have the same diagonal size of 3.00 inches.
Both cameras feature
Tilting screens where you can change the angle of the screen to make it easier to shoot from waist or over-the-head levels.
